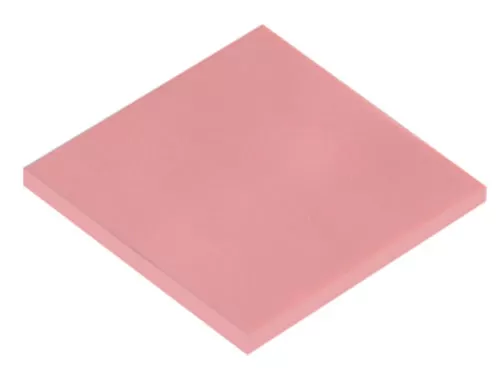

TP600 series thermal pad is a material with high thermal conductivity. It's self-adhesive on both sides. When used with electronic components, it exhibits lower thermal resistance and better electrical insulation characteristics under low compression. It can work stably at -40℃ ~ +150℃ and meet the flame retardant requirements of UL 94 V-0 standards.
Thermal Conductivity: 6.0W/m.K
High Conformability
Electrically Insulating
Easy to Assembly
Between electronic components such as semiconductor, IC, CPU, MOS and heat sink, LCD-TV, radio devices and equipment, both analogue and digital, and all the accompanying accessories (GPS receivers, switching units, radio bridges, etc.).
Properties | Test Method | |
Color | Warm Red | Visual |
Thickness(mm) | 1.0 to 10.0 | ASTM D374 |
Density(g/cc) | 3.285 | ASTM D792 |
Hardness(Shore 00) | 40 | ASTM D2240 |
Weight Damnify (%, Volatilization/Exudation) | ≤1.0 | Filter paper adsorption @25%compression,125℃,48H |
Usage Temperature(℃) | - 40 to 150 | / |
Flammability | V-0 | UL 94 |
Shelf Life(month) | 12 | Temperature<40℃, avoid extrusion and exposure to the sun |
Electrical | ||
Breakdown Voltage(kV/mm) | ＞5.0 | ASTM D149 |
Volume Resistivity(Ω·cm) | 1012 | ASTM D257 |
Dielectric Constant(@1MHz) | 7.9 | ASTM D150 |
Thermal | ||
Thermal Conductivity(W/(m·K)) | 6.0 | ISO22007-2 |
Thermal Resistance (℃·in2/W@20psi,1.0mm) | 0.11 | ASTM D5470 |
| Attribute | Value | Test Method |
Composition | Ceramic Filled Silicone | - |
Color | Warmred | Visual |
Thickness (mm) | 0.5 ~ 10.0 | ASTM D374 |
Density (g/cc) | 3.285 | ASTM D792 |
Hardness (shore oo) | 40 (Thickness ≤ 1.0 Shore OO 50) | ASTM D2240 |
Usage Temperature (℃) | -40 ~ +150 | - |
Electrical | ||
Breakdown Voltage (kV/mm) | ＞5.0 | ASTM D149 |
Dielectric Constant @1MHz | 7.9 | ASTM D150 |
Volume Resistivity (Ω.cm) | 1012 | ASTM D257 |
Flammability Rating | V-0 | UL 94 |
Thermal | ||
Thermal Conductivity (W/m.K) | 6.0 | ISO 22007-2 |
Thermal Resistance (℃ −in2/W, @20psi, 1mm ) | 0.138 | ASTM D5470 |
OEM: thermal pads are available in sheets or cut parts to match a wide range of industry standard or customer defined outlines.
AOK
200x400mm or custom die cut parts.
Thickness available in 0.25mm increments.
Store in a cool, dry, well-ventilated place.
Shelf life of the product is 12 months after date of shipment.
