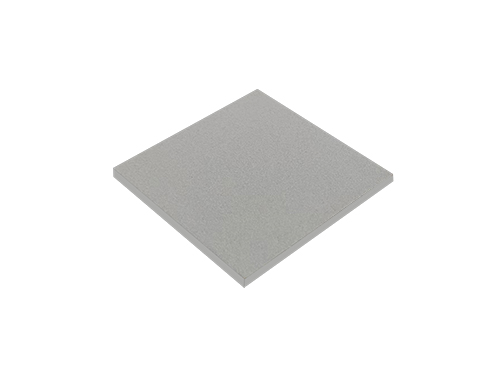

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TP1200 Series Thermal Pad
TP1200 is a 12.0W/m.K, high thermal conductive gap filler pad that low thermal resistance and excellent electrical insulation at low compression. It can work stably at -40℃ ~ +150℃ and meet UL 94 V-0 flame retardant grade.
Features: 12.0W/m.K high performance thermal pad, high electrical insulation, wide usage temperature, high compression ratio.
Applications: VRMs, ASICs and DSPs, Network Communication Devices, BGAs, CD ROM/DVD ROM, medical aesthetic equipment.
Send Inquiry
Applications: VRMs, ASICs and DSPs, Network Communication Devices, BGAs, CD ROM/DVD ROM, medical aesthetic equipment.
Technical Information
Attribute |
Value |
Test Method |
|
Color |
Grey |
Visual |
|
Thickness (mm) |
0.5 ~ 5.0 |
ASTM D374 |
|
Density (g/cc) |
3.3 |
ASTM D792 |
|
Hardness (shore oo) |
65 |
ASTM D2240 |
|
Usage Temperature (℃) |
-40 ~ +150 |
- |
|
Flammability |
V-0 |
UL 94 |
|
Shelf Life (month) |
12 |
Temperature <40℃ avoid extrusion and exposure to the sun |
Electrical |
||
|
Breakdown Voltage (kV/mm) |
＞5.0 |
ASTM D149 |
|
Dielectric Constant @1MHz |
7.0 |
ASTM D150 |
|
Volume Resistivity (Ω.cm) |
1012 |
ASTM D257 |
Thermal |
||
|
Thermal Conductivity (W/m.K) |
12.0 |
ISO 22007-2 |
Legal Disclaimer
The technical information and data shown on this page should be considered representative or typical only and should not be used for specification purposes. Please contact us or e-mail [email protected] to determine product availability.
* OEM: thermal pads are available in sheets or cut parts to match a wide range of industry standard or customer defined outlines.
Thermal Pad Manufacturer
AOK
Standard Sheet Size
200x400mm or custom die cut parts.
Thickness available in 0.25mm increments.
Storage
Store in a cool, dry, well-ventilated place.
Shelf life
Shelf life of the product is 12 months after date of shipment.
