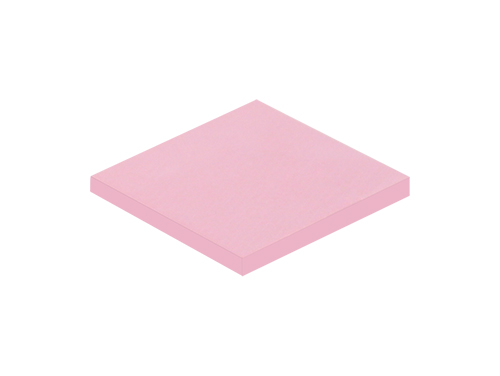

• Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

TP120 Series Thermal Pad

TP120 thermal conductive silicone pad is a special thermal conductive gasket developed for low compression force, low thermal resistance, high softness and compliance applications. It can work stably at -40 ~ +150 ℃ and meet the flame retardant grade requ irements of UL 94 V-0 standards.
Features: good thermal conductivity, xtremely soft and cost effective, RoHS compliant.
Applications: suitable for PC, control board, motor, electronics, CPU, GPU, heat sink, power PCB, PS4/PS5, car machinery, PC body, laptop, solid state drive, gaming equipment, DVD, VCD, case cover, top box, LED IC SMD DIP, cooling module.
Send Inquiry
Technical Information

Attribute

Value

Test Method

Composition Ceramic Filler + Silicone -
Color Light Red Visual
Thickness (mm) 0.5 ~ 12.0 ASTM D374
Density (g/cc) 2.3 ASTM D792
Hardness (Shore OO) 20 (Thickness ≤ 1.0 Shore OO 35) ASTM D2240
Usage Temperature (℃) -40 ~ +150 -

Electrical

Breakdown Voltage (kV/mm) ≥ 6.5 ASTM D149
Dielectric Constant @1MHz 5.3 ASTM D150

Volume Resistivity (Ω.cm)

1012 ASTM D257
Flammability V-0 UL 94

Thermal

Thermal Conductivity (W/m.K) 1.2 ISO 22007-2

Legal Disclaimer

The technical information and data shown on this page should be considered representative or typical only and should not be used for specification purposes. Please contact us or e-mail sales@aok-technologies.com to determine product availability.

* OEM: thermal pads are available in sheets or cut parts to match a wide range of industry standard or customer defined outlines.


Thermal Pad Manufacturer

AOK

Standard Sheet Size

200x400mm or custom die cut parts.

Thickness available in 0.25mm increments.

Storage

Store in a cool, dry, well-ventilated place.

Shelf life

Shelf life of the product is 12 months after date of shipment.
