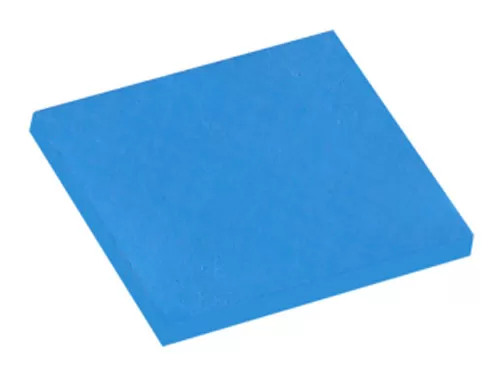

TP700 thermal conductive silicone pad is a kind of material with high thermal conductivity. It's double-sided selfadhesive. When assembling with electronic components, it shows low thermal resistance and better electrical insulation characteristics under low compression force. It can work stably at -40 ~ +150℃ and meet the flame retardant grade requirements of UL 94 V-0 standards.
Thermal Conductivity: 7.0W/m.K
High Thermal Conductivity
Between electronic components such as semiconductor, IC, CPU. MOS and heatsink, power bank fast charger, LED lighting.
Attribute | Test Method | |
Color | Light blue | Visual |
Thickness(mm) | 0.5~10 | ASTM D374 |
Density(g/cc) | 3.3 | ASTM D792 |
Hardness(Shore 00 ) | 50 | ASTM D2240 |
Weight lost(%) | ≤1.0 | Filter paper adsorption Compression 25% 125 ℃ 48H |
Usage temperature(°C) | -40~150 | / |
Flammability | V-0 | UL 94 |
Shelf Life（Months） | 12 | Temperature < 40 ℃ to avoid extrusion, exposure |
Electrical | ||
Breakdown Voltage (kV/mm) | ＞6.0 | ASTM D149 |
Dielectric constant | 7.1 | ASTM D150 |
Volume Resistivity（Ω.cm） | 1012 | ASTM D257 |
Thermal | ||
Thermal Conductivity(W/m.K) | 7.0 | ISO 22007-2 |
Thermal resistance (℃-in²,[email protected]) | 0.13 | ASTM D5470 |
Attribute | Value | Test Method |
Composition | Ceramic Filler + Silicone | - |
Color | Light Blue | Visual |
Thickness (mm) | 0.5 ~ 10.0 | ASTM D374 |
Density (g/cc) | 3.3 | ASTM D792 |
Hardness (shore oo) | 50 (Thickness ≤ 1.0 Shore OO 55) | ASTM D2240 |
Usage Temperature (℃) | -40 ~ +150 | - |
Electrical | ||
Breakdown Voltage (kV/mm) | ＞6.0 | ASTM D149 |
Dielectric Constant @1MHz | 7.1 | ASTM D150 |
Volume Resistivity (Ω.cm) | 1012 | ASTM D257 |
Flammability | V-0 | UL 94 |
Thermal | ||
Thermal Conductivity (W/m.K) | 7.0 | ISO 22007-2 |
OEM: thermal pads are available in sheets or cut parts to match a wide range of industry standard or customer defined outlines.
AOK
200x400mm or custom die cut parts.
Thickness available in 0.25mm increments.
Store in a cool, dry, well-ventilated place.
Shelf life of the product is 12 months after date of shipment.
