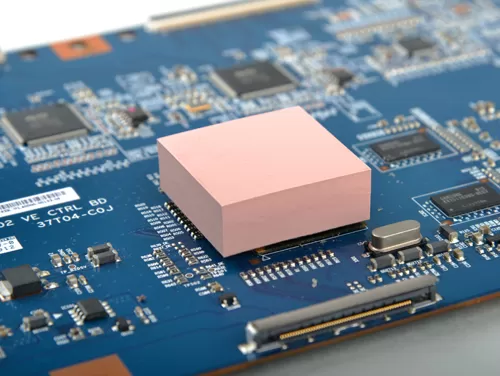

TP600-H40-9 is a 6.0W/(m·K), high thermal conductive gap filler pad, double sides nature tacky, low thermal resistance and excellent electrical insulation at low compression. It can work stably at -40℃~150℃ and meet UL94 V-0 flame retardant grade.
6.0W/(m·K)
Self-adhesive on both sides
High electrical insulation
Wide usage temperature
High compression ratio
VRMs
ASICs and DSPs
Network Communication Devices
BGAs
CD ROM/DVD ROM
Properties | Attribute | Test Method |
Color | Warm Red | Visual |
Thickness(mm) | 1.0 to 10.0 | ASTM D374 |
Density(g/cc) | 3.285 | ASTM D792 |
Hardness(Shore 00) | 40 | ASTM D2240 |
Weight Damnify (%, Volatilization/Exudation) | ≤1.0 | Filter paper adsorption @25%compression,125℃,48H |
Usage Temperature(℃) | - 40 to 150 | / |
Flammability | V-0 | UL 94 |
Shelf Life(month) | 12 | Temperature<40℃ avoid extrusion and exposure to the sun |
Electrical | ||
Breakdown Voltage(kV/mm) | ＞5.0 | ASTM D149 |
Volume Resistivity(Ω·cm) | 1012 | ASTM D257 |
Dielectric Constant(@1MHz) | 7.9 | ASTM D150 |
Thermal | ||
Thermal Conductivity(W/(m·K)) | 6.0 | ISO22007-2 |
Thermal Resistance (℃·in2/W@20psi,1.0mm) | 0.11 | ASTM D5470 |
