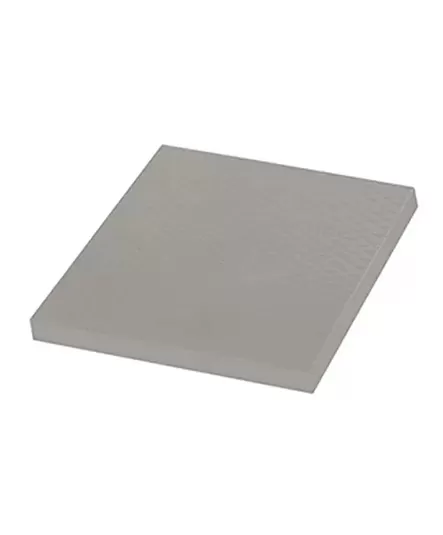

TP200-S gap filler pad, is key when your thermal needs begin to changed from design enhancement to thermal requirement. At 2.0W/m.K, TP200-S begins to add that extra thermal punch many designs require to keep specifications within thermal design targets.
Soft and Highly Compliant
Naturally Tacky
Easing Application
Electro-optical and radar sensors, navigation systems, inertial sensors, GNSS and robotics, speed sensors, displays, embedded computers, power control & conditioning systems, RF & microwave products, networking and telecommunications, notebooks, tablets, power conversion, SSD, NVMe, VAM, VRAM, heat sink, EMS, ITM, MCU.
| Attribute | TP200-H25-L | TP200-H35-S | Test Method |
| Color | Light Yellow | Grey | Visual |
| Thickness (mm) | 1.0 to 10 | 0.5 to 12.0 | ASTM D374 |
| Density (g/cc) | 2.82 | 2.3 | ASTM D792 |
| Hardness (Shore 00) | 25 | 35 | ASTM D2240 |
| Elongation (%) | / | ＞100 | ASTM D412 |
| Volatility / Oil Penetration | No volatile condensate (150℃/168H) | ＜0.5% (Oil penetration rate) | / |
| Weight Loss (%) | ＜0.1 (@150℃) | / | ASTM E595-07 |
| Low-molecular Silicon (ppm) | ≤50 (D3~D10) | / | / |
| Usage Temperature (°C) | -40 to 150 | -40 to 150 | / |
| Flammability | V-0 | V-0 | UL 94 |
| Shelf Life (Months) | 12 | 12 | Temp<40℃, avoid extrusion/sun |
| Electrical Properties | |||
| Breakdown Voltage (kV/mm) | ≥ 6.0 | ≥ 6.0 | ASTM D149 |
| Volume Resistivity (Ω·cm) | 10¹³ | ≥10¹³ | ASTM D257 |
| Dielectric Constant (@1MHz) | 5.72 | 5.49 | ASTM D150 |
| Thermal Properties | |||
| Thermal Conductivity (W/m·K) | 2.0 | 2.0 | ISO 22007-2 |
| Thermal Resistance | 0.2 (℃·in²/W, 1mm, 20psi) | / | ASTM D5470 |
| Attribute | Value | Test Method |
Composition | Ceramic Filler + Silicone | - |
Color | Grey | Visual |
Thickness (mm) | 0.7 ~ 12.0 | ASTM D374 |
Density (g/cc) | 2.82 | ASTM D792 |
Hardness (shore oo) | 25 (Thickness ≤ 1.0 Shore OO 35) | ASTM D2240 |
Usage Temperature (℃) | -40 ~ +150 | - |
Electrical | ||
Breakdown Voltage (kV/mm) | ≥ 6.0 | ASTM D149 |
Dielectric Constant | 7.0 | ASTM D150 |
Volume Resistivity (Ω.cm) | 1013 | ASTM D257 |
Flammability | V-0 | UL 94 |
Thermal | ||
Thermal Conductivity (W/m.K) | 2.0 | ISO 22007-2 |
OEM: thermal pads are available in sheets or cut parts to match a wide range of industry standard or customer defined outlines.
AOK
200x400mm or custom die cut parts.
Thickness available in 0.25mm increments.
Store in a cool, dry, well-ventilated place.
Shelf life of the product is 12 months after date of shipment.
