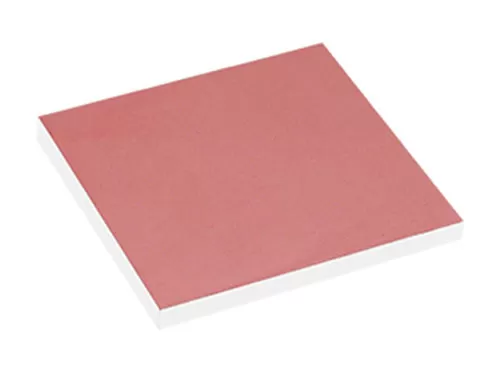

UTP100 thermal conductive silicone pad is made of silica gel and thermal conductive ceramic filler, with glass fiber cloth as reinforcing material, and processed by special technology. With single-side self-adhesive, puncture proof, anti-penetration voltage enhancement, is a very soft, has excellent compressibility of thermal conductivity silicone pad, and electronic components close contact, effectively reduce the interface thermal resistance. At -40 ~ +150℃ can work stably, at the same time meet the UL 94 V-0 standards grade flame retardant requirements.
Thermal Conductivity 1.0W/m.K
Ultra Soft
Excellent Compressibility
RoHS Compliant
High speed mass drive, onboard charger (OBC), VGA, full self-driving (FSD) computer installations, led lighting, PCB board, chips, battery management system (BMS).
Attribute | Value | Test Method |
Composition | Ceramic Filler, Silicone, and Reinforced Fiberglass | - |
Color | White and Brownish Red | Visual |
Thickness (mm) | 0.5 ~ 12.0 | ASTM D374 |
Density (g/cc) | 1.9 | ASTM D792 |
Hardness (shore oo) | 30 | ASTM D2240 |
Usage Temperature (℃) | -40 ~ +150 | - |
Electrical | ||
Breakdown Voltage (kV) | ≥ 8.0 | ASTM [email protected] |
Dielectric Constant (1000Hz) | 5.3 | ASTM D150 |
Volume Resistivity (Ω.cm) | 1013 | ASTM D257 |
Flammability | V-0 | UL 94 |
Thermal | ||
Thermal Conductivity (W/m.K) | 1.0 | ISO 22007-2 |
OEM: thermal pads are available in sheets or cut parts to match a wide range of industry standard or customer defined outlines.
AOK
200x400mm or custom die cut parts.
Thickness available in 0.25mm increments.
Store in a cool, dry, well-ventilated place.
Shelf life of the product is 12 months after date of shipment.
