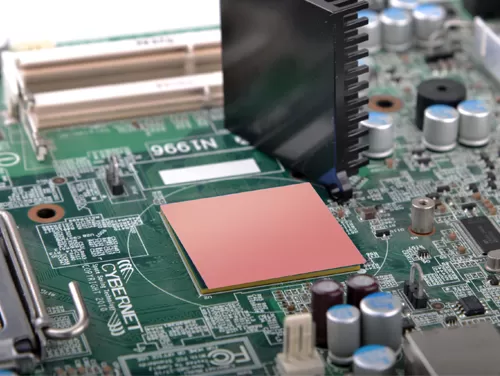

TP800-H60-9 is a 8W/m.K, , high thermal conductive gap filler pad that low thermal resistance and excellent electrical insulation at low compression. It can work stably at -40℃~150℃ and meet UL94 V-0 flame retardant grade.
8.0W/m.K
High thermal conductivity
Low permeability oil
High electrical insulation
Good toughness and easy operation
High compression rate, low compression force
VRMs
ASICs and DSPs
Network Communication Devices
BGAs
CD ROM/DVD ROM
Properties | Attribute | Test Method |
Color | Red | Visual |
Thickness(mm) | 0.5 to 5.0 | ASTM D374 |
Density (g/cc) | 3.35 | ASTM D792 |
Hardness(Shore OO) | 60 | ASTM D2240 |
Weight Damnify (%) | ≤0.7 | Filter paper adsorption @ 25% compression 125℃48H |
Usage Temperature (°C) | - 40 to 150 | − |
Flammability | V-0 | UL 94 |
Electrical | ||
Breakdown Voltage (kV/mm) | ＞6.0 | ASTM D149 |
Volume Resistivity (Ω.cm) | 1012 | ASTM D257 |
Dielectric Constant | 7.2 | ASTM D150 |
Thermal | ||
Thermal Conductivity (W/m-K) | 8.0 | ISO22007-2 |
Thermal resistance (℃.in2/W,[email protected]) | 0.08 | ASTM D5470 |
