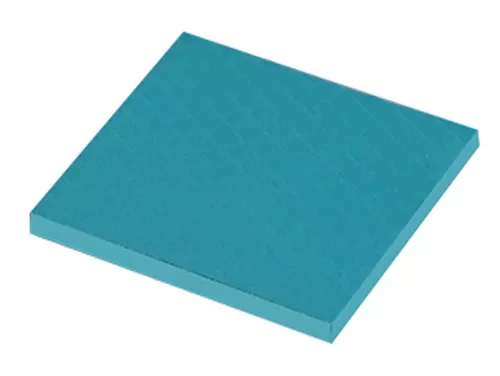

TP500 thermal conductive silicone pad is a kind of material with high thermal conductivity. It's double-sided selfadhesive. When assembling with electronic components, it shows low thermal resistance and better electrical insulation characteristics under low compression force. It can work stably at -40 ~ +200℃ and meet the flame retardant grade requirements of UL 94 V-0 standards.
Elevated Performance Gap Filler Pad
Thermal Conductivity: 5.0W/m.K
Networking and telecommunications, IT: BGA, ASIC, VRAM, IC, high speed storage, energy storage systems, power box, CCTV camera, driver controller.
Properties | Test Method | |
Color | Green | Visual |
Thickness (mm) | 0.75 to 6.0 | ASTM D374 |
Density (g/cc) | 3.3 | ASTM D792 |
Hardness (Shore 00) | 40 | ASTM D2240 |
Weight Loss (%) | ≤1.0 | Filter paper adsorption @25% compression/125℃/48h |
Flammability | - 40 to 150 | UL 94 |
Usage Temperature (°C) | V-0 | / |
Shelf Life (Month) | 12 | Temperature<40℃, avoid extrusion and exposure to the sun |
Electrical | ||
Breakdown Voltage (kV/mm) | ≥5.0 | ASTM D149 |
Dielectric Constant (@1MHz) | 7.1 | ASTM D150 |
Volume Resistivity (Ω·cm) | ≥1012 | ASTM D257 |
Thermal | ||
Thermal Conductivity (W/(m·K)) | 5.0 | ISO 22007-2 |
| Attribute | Value | Test Method |
Composition | Ceramic Filler + Silicone | - |
Color | Green | Visual |
Thickness (mm) | 0.5 ~ 6.0 | ASTM D374 |
Density (g/cc) | 3.2 | ASTM D792 |
Hardness (shore oo) | 50 (Thickness ≤ 1.0 Shore OO 60) | ASTM D2240 |
Usage Temperature (℃) | -40 ~ +200 | - |
Electrical | ||
Breakdown Voltage (kV/mm) | ≥ 6.0 | ASTM D149 |
Dielectric Constant @1MHz | 7.4 | ASTM D150 |
Volume Resistivity (Ω.cm) | 1010 | ASTM D257 |
Flammability | V-0 | UL 94 |
Thermal | ||
Thermal Conductivity (W/m.K) | 5.0 | ISO 22007-2 |
OEM: thermal pads are available in sheets or cut parts to match a wide range of industry standard or customer defined outlines.
AOK
200x400mm or custom die cut parts.
Thickness available in 0.25mm increments.
Store in a cool, dry, well-ventilated place.
Shelf life of the product is 12 months after date of shipment.
