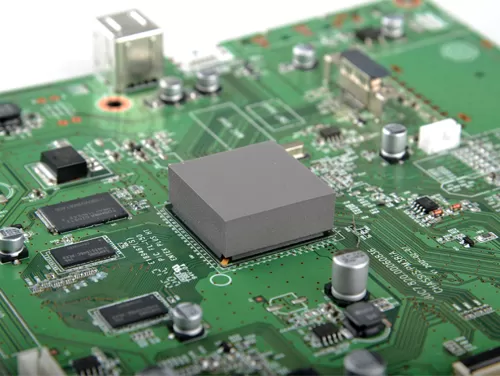

TP200-H35-S is an 2W/(m·K), ultra-soft thermally conductive gap filler pad, which is made of silicone and thermally conductive ceramic filler, natural adhesive on both sides, exhibits excellent thermal conductivity and electrical insulation performance at low compression force, and meets UL94 V-0 flammability.
2W/(m·K)
Low compression force
Natural adhesive on both sides
High electrical insulation
Glass fiber/PI film reinforcement optional
Easy to assemble and reusable
Heat Sink Module
Automotive Engine Control Unit
Flat Panel displays
Power Conversion Devices
LED Lighting Devices
Power Supply Modules
Properties | Attribute | Test Method | |
Color | Grey | Visual | |
Thickness (mm) | 0.5 to 12.0 | ASTM D374 | |
Density (g/cc) | 2.3 | ASTM D792 | |
Hardness (Shore 00) | 35 | ASTM D2240 | |
Elongation (%) | ＞100 | ASTM D412 | |
Oil penetration rate | (%) | ＜0.5 | Filter paper adsorption@25% compression/125℃/48h initial Ø30mm |
(Φ/mm) | ≤40 | ||
Usage Temperature (°C) | -40 to 150 | / | |
Flammability | V-0 | UL 94 | |
Shelf Life (month) | 12 | Temperature<40℃ avoid extrusion and exposure to the sun | |
Electrical | |||
Breakdown Voltage (kV/mm) | ≥6.0 | ASTM D149 | |
Dielectric Constant (@1MHz) | 5.49 | ASTM D150 | |
Volume Resistivity (Ω·cm) | ≥1013 | ASTM D257 | |
Thermal | |||
Thermal Conductivity (W/(m·K)) | 2.0 | ISO 22007-2 | |
