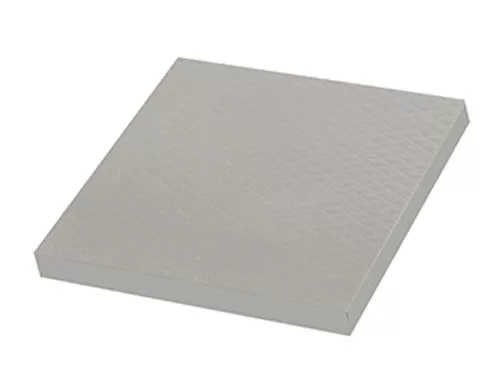

TP150-S thermal conductive silicone pad is a product that takes into account performance and economy. It's a uniqu e thermal conductive pad with low thermal resistance, super softness and high compliance. At -40 ~ +150℃ can be fixed to work, meet the requirements of UL 94 V-0 standards flame retardant grade.
Ultra Soft and Highly Compliant
Naturally Tacky
Easing Application
RoHS Compliant
Telecommunications equipment, consumer electronics, automotive electronics (ECUs), LED lighting, power conversion, drones, desktop computers, laptop, servers, handheld devices, memory modules, NVMe SSD, GPU, CPU, graphics card.
| Attribute | TP150-H40-S | TP150-H55-S | Test Method |
| Color | Light Grey | Light Grey | Visual |
| Thickness (mm) | 1.0 to 10.0 | 0.5 to 10.0 | ASTM D374 |
| Density (g/cc) | 2.2 | 2.2 | ASTM D792 |
| Hardness (Shore 00) | 40 | 55~60 (d≤1.0mm) / 50~55 (d＞1.0mm) | ASTM D2240 |
| Oil Penetration / Leakage Rate | ≤40 (Φ/mm) | ≤40 (Φ/mm) | Filter paper adsorption @25% compression/125℃/48h |
| Volatility (%) | ＜0.5 | ≤0.5 | Initial Φ30mm |
| Usage Temperature (°C) | -50 to 150 | -40 to 150 | / |
| Flammability / Fire Resistance | V-0 | V-0 | UL 94 |
| Shelf Life (Months) | 12 | 12 | Temp<40℃, avoid compression/sun |
| Electrical Properties | |||
| Breakdown Voltage | ≥7.0 (kV/mm) | ≥10 (kV) @0.3mm | ASTM D149 |
| Dielectric Constant (@1MHz) | 4.11 | 4.11 | ASTM D150 |
| Volume Resistivity (Ω·cm) | 10¹³ | 10¹³ | ASTM D257 |
| Thermal Properties | |||
| Thermal Conductivity (W/m·K) | 1.5 | 1.5 | ISO 22007-2 |
| Attribute | Value | Test Method |
Composition | Ceramic Filler + Silicone | - |
Color | Light Grey | Visual |
Thickness (mm) | 0.5 ~ 10.0 | ASTM D374 |
Density (g/cc) | 2.5 | ASTM D792 |
Hardness (shore oo) | 40 (Thickness ≤ 0.75 Shore OO 55) | ASTM D2240 |
Usage Temperature (℃) | -40 ~ +150 | - |
Electrical | ||
Breakdown Voltage (kV/mm) | ≥ 7.0 | ASTM D149 |
Dielectric Constant @1MHz | 6.66 | ASTM D150 |
Volume Resistivity (Ω.cm) | 1013 | ASTM D257 |
Flammability | V-0 | UL 94 |
Thermal | ||
Thermal Conductivity (W/m.K) | 1.5 | ISO 22007-2 |
OEM: thermal pads are available in sheets or cut parts to match a wide range of industry standard or customer defined outlines.
AOK
200x400mm or custom die cut parts.
Thickness available in 0.25mm increments.
Store in a cool, dry, well-ventilated place.
Shelf life of the product is 12 months after date of shipment.
