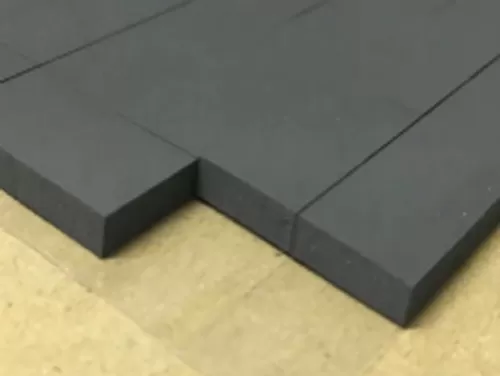

TP150-H55-AM1 is a gasket with both thermal conductivity and wave absorbing functions. It is made of silica gel and thermally conductive wave absorbing ceramic filler through a special process. It has good thermal conductivity, electromagnetic wave absorption and electromagnetic shielding functions. can absorb the leaked electromagnetic radiation, achieve the purpose of eliminating electromagnetic interference, and provide a good solution for electronic communication products in terms of heat conduction and electromagnetic shielding.
Thermal Conductivity : 1.5 W/(m.K)
Excellent electromagnetic shielding function
Excellent high and low temperature and mechanical properties
High chemical stability
Telecom network
Automotive electronic, OBC
New energy vehicles
Consumer electronic
Industrial automation equipment
Attribute | Value | Test Method |
Color | Grey | Visual |
Thickness (mm) | 0.5 to 10.0 | ASTM D374 |
Density (g/cc) | 4.2 | ASTM D792 |
Hardness (Shore 00) | 55 | ASTM D2240 @T≥2.0mm |
Reflectivity (dB) | -5(2-6GHz) | GJB-2038A-2011 |
Total Mass Loss (%) | ≤1.0 | Filter paper adsorption @25% compression/125℃/48h |
Usage Temperature (°C) | -40 to 150 | / |
Flammability | V-0 | UL 94 |
Shelf Life (month) | 12 | Temperature<40℃; avoid compression, exposure to the sun |
Electrical | ||
Breakdown Voltage (kV/mm) | ≥0.2 | ASTM D149 |
Dielectric Constant (@10MHz) | ≤20 | ASTM D150 |
Thermal | ||
Thermal Conductivity (W/(m.K)) | 1.5 | ISO 22007-2 |
