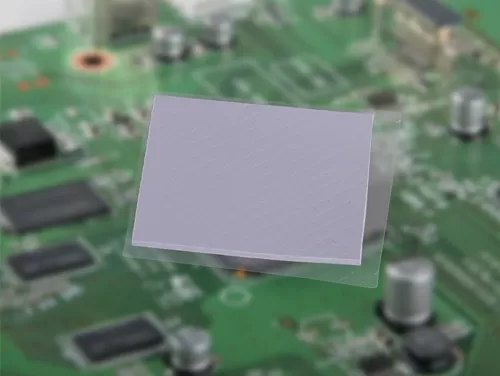

TP150-H40-S thermal conductive silicone gasket is a product that takes into account performance and operability. It has a unique thermal conductive gasket with low thermal resistance, high softness, high wettability and high compliance. It can work stably at -50℃~150℃.
Thermal Conductivity : 1.5W/(m.K)
Super soft
Natural adhesive on both sides
High electrical insulation
Glass fiber/PI film reinforcement optional
High compression ratio for low compression force applications
LCD backlight module
Flat Panel Displays
Power Conversion Devices
Automotive engine control unit
High speed large storage driver
Between cooling device to chassis or frame
Attribute | Value | Test Method | |
Color | Light grey | Visual | |
Thickness (mm) | 1.0 to 10.0 | ASTM D374 | |
Density (g/cc) | 2.2 | ASTM D792 | |
Hardness (Shore 00) | 40 | ASTM D2240 | |
Oil Penetration Rate | (Φ/mm) | ≤40 | Filter paper adsorption @25% compression/125℃/48h Initial Φ30mm |
(%) | ＜0.5 | ||
Usage Temperature (°C) | -50 to 150 | / | |
Flammability | V-0 | UL 94 | |
Shelf Life (months) | 12 | Temperature<40℃; avoid compression, exposure to the sun | |
Electrical | |||
Breakdown Voltage (kV/mm) | ≥7.0 | ASTM D149 | |
Dielectric Constant (@1MHz) | 4.11 | ASTM D150 | |
Volume Resistivity (Ω.cm) | 1013 | ASTM D257 | |
Thermal | |||
Thermal Conductivity (W/(m.K)) | 1.5 | ISO 22007-2 | |
