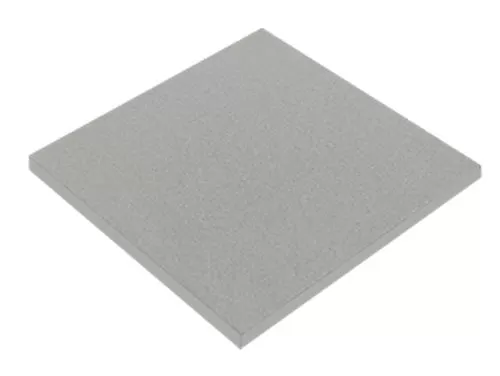

TP1200 is a 12.0W/m.K, high thermal conductive gap filler pad that low thermal resistance and excellent electrical insulation at low compression. It can work stably at -40℃ ~ +150℃ and meet UL 94 V-0 flame retardant grade.
12.0W/m.K High Performance Thermal Pad
High Electrical Insulation
Wide Usage Temperature
High Compression Ratio
VRMs, ASICs and DSPs, Network Communication Devices, BGAs, CD ROM/DVD ROM, medical aesthetic equipment.
Properties | Test Method | ||
Color | Grey | Visual | |
Thickness(mm) | 0.5 to 5.0 | ASTM D374 | |
Density(g/cc) | 3.3 | ASTM D792 | |
Hardness(Shore 00) | 65 | ASTM D2240 | |
Oil Bleeding(%) | ＜0.5 | Filter paper adsorption @25%compression,125℃,48H | |
Usage Temperature(°C) | - 40 to 150 | − | |
Flammability | V-0 | UL 94 | |
Shelf Life(month) | 12 | Temperature<40℃ avoid extrusion and exposure to the sun | |
Electrical | |||
Breakdown Voltage(kV/mm) | ＞5.0 | ASTM D149 | |
Volume Resistivity(Ω·cm) | 1012 | ASTM D257 | |
Dielectric Constant(@1MHz) | 7.0 | ASTM D150 | |
Thermal | |||
Thermal Conductivity (W/(m·K)) | 12.0 | ISO22007-2 | |
Thermal Resistance (℃·in2/W @50psi) | T＝1.0mm | 0.134 | ASTM D5470 |
T＝2.0mm | 0.167 | ||
T＝3.0mm | 0.345 | ||
Attribute | Value | Test Method |
Color | Grey | Visual |
Thickness (mm) | 0.5 ~ 5.0 | ASTM D374 |
Density (g/cc) | 3.3 | ASTM D792 |
Hardness (shore oo) | 65 | ASTM D2240 |
Usage Temperature (℃) | -40 ~ +150 | - |
Flammability | V-0 | UL 94 |
Shelf Life (month) | 12 | Temperature<40℃ avoid extrusion and exposure to the sun |
Electrical | ||
Breakdown Voltage (kV/mm) | ＞5.0 | ASTM D149 |
Dielectric Constant @1MHz | 7.0 | ASTM D150 |
Volume Resistivity (Ω.cm) | 1012 | ASTM D257 |
Thermal | ||
Thermal Conductivity (W/m.K) | 12.0 | ISO 22007-2 |
OEM: thermal pads are available in sheets or cut parts to match a wide range of industry standard or customer defined outlines.
AOK
200x400mm or custom die cut parts.
Thickness available in 0.25mm increments.
Store in a cool, dry, well-ventilated place.
Shelf life of the product is 12 months after date of shipment.
