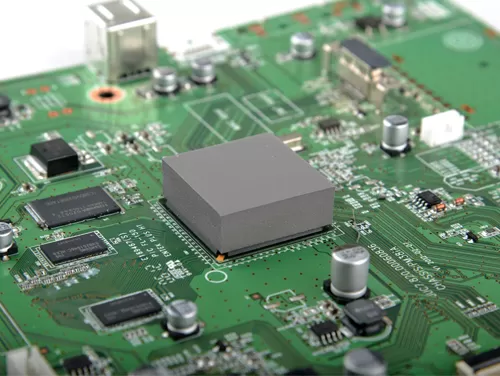

TP1200 is a 12.0W/(m·K), high thermal conductive gap filler pad that low thermal resistance and excellent electrical insulation at low compression. It can work stably at -40℃~150℃ and meet UL94 V-0 flame retardant grade.
12.0W/(m·K)
High electrical insulation
Wide usage temperature
High compression ratio
VRMs
ASICs and DSPs
Network Communication Devices
BGAs
CD ROM/DVD ROM
Properties | Attribute | Test Method | |
Color | Grey | Visual | |
Thickness(mm) | 0.5 to 5.0 | ASTM D374 | |
Density(g/cc) | 3.3 | ASTM D792 | |
Hardness(Shore 00) | 65 | ASTM D2240 | |
Oil Bleeding(%) | ＜0.5 | Filter paper adsorption @25%compression,125℃,48H | |
Usage Temperature(°C) | - 40 to 150 | − | |
Flammability | V-0 | UL 94 | |
Shelf Life(month) | 12 | Temperature<40℃ avoid extrusion and exposure to the sun | |
Electrical | |||
Breakdown Voltage(kV/mm) | ＞5.0 | ASTM D149 | |
Volume Resistivity(Ω·cm) | 1012 | ASTM D257 | |
Dielectric Constant(@1MHz) | 7.0 | ASTM D150 | |
Thermal | |||
Thermal Conductivity (W/(m·K)) | 12.0 | ISO22007-2 | |
Thermal Resistance (℃·in2/W @50psi) | T＝1.0mm | 0.134 | ASTM D5470 |
T＝2.0mm | 0.167 | ||
T＝3.0mm | 0.345 | ||
