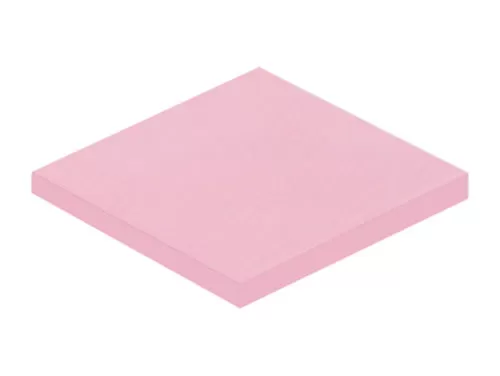

TP120 thermal conductive silicone pad is a special thermal conductive gasket developed for low compression force, low thermal resistance, high softness and compliance applications. It can work stably at -40 ~ +150 ℃ and meet the flame retardant grade requ irements of UL 94 V-0 standards.
Good Thermal Conductivity
Xtremely Soft and Cost Effective
Rohs Compliant
Suitable for PC, control board, motor, electronics, CPU, GPU, heat sink, power PCB, PS4/PS5, car machinery, PC body, laptop, solid state drive, gaming equipment, DVD, VCD, case cover, top box, LED IC SMD DIP, cooling module.
| Attribute | Value | Test Method |
Composition | Ceramic Filler + Silicone | - |
Color | Light Red | Visual |
Thickness (mm) | 0.5 ~ 12.0 | ASTM D374 |
Density (g/cc) | 2.3 | ASTM D792 |
Hardness (Shore OO) | 20 (Thickness ≤ 1.0 Shore OO 35) | ASTM D2240 |
Usage Temperature (℃) | -40 ~ +150 | - |
Electrical | ||
Breakdown Voltage (kV/mm) | ≥ 6.5 | ASTM D149 |
Dielectric Constant @1MHz | 5.3 | ASTM D150 |
Volume Resistivity (Ω.cm) | 1012 | ASTM D257 |
Flammability | V-0 | UL 94 |
Thermal | ||
Thermal Conductivity (W/m.K) | 1.2 | ISO 22007-2 |
OEM: thermal pads are available in sheets or cut parts to match a wide range of industry standard or customer defined outlines.
AOK
200x400mm or custom die cut parts.
Thickness available in 0.25mm increments.
Store in a cool, dry, well-ventilated place.
Shelf life of the product is 12 months after date of shipment.
