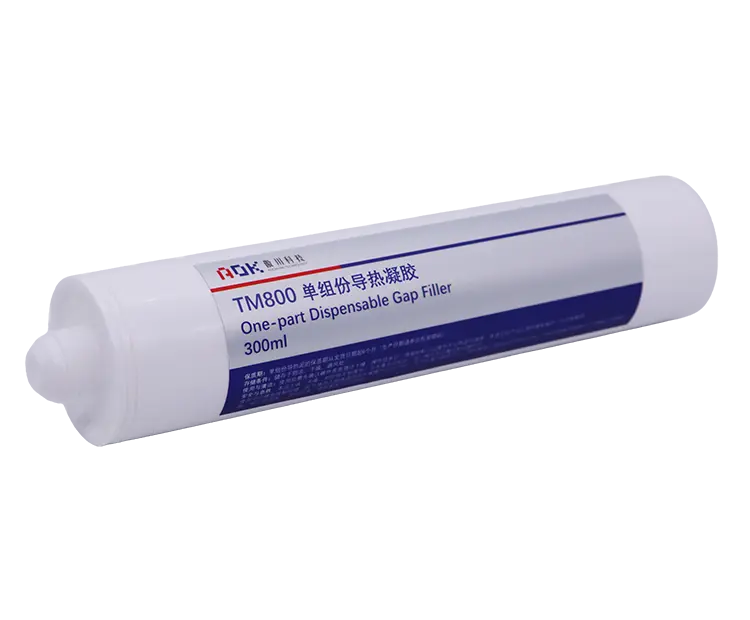

TM800 is a highly malleable silicone thermal conductive product that offers high thermal conductivity and high electrical insulation. It gradually cures during the customer's application process. Its semi-fluid state makes it suitable for automated dispensing processes, providing efficient thermal conduction and excellent gap-filling performance.
Thermal Conductivity: 8.0W/(m·K)
Curable
High electrical insulation
Well temperature resistance
Can be automated dispensing
ECU
Enclosure
Power module
Power converter
Network communication equipment
Properties | Attribute | Test Method |
Color | Pink | Visual |
Density (g/cc) | 3.3 | ASTM D792 |
Flow rate (g/min) | 3 to 5 | 14 needle/0.4MPa |
Usage temperature (°C) | -40 to 150 | / |
Flammability | V-0 | UL 94 |
Shelf Life (Month) | 6 | Temperature<40℃ avoid extrusion and exposure to the sun |
Electrical | ||
Breakdown Voltage (kV/mm) | ＞5.0 | ASTM D149 |
Volume Resistivity (Ω·cm) | 1012 | ASTM D257 |
Thermal | ||
Thermal Conductivity (W/(m·K)) | 8.0 | ISO 22007-2 |
Thermal Resistance (℃·in2/W @50psi,80℃） | 0.05 | ASTM D5470 |
