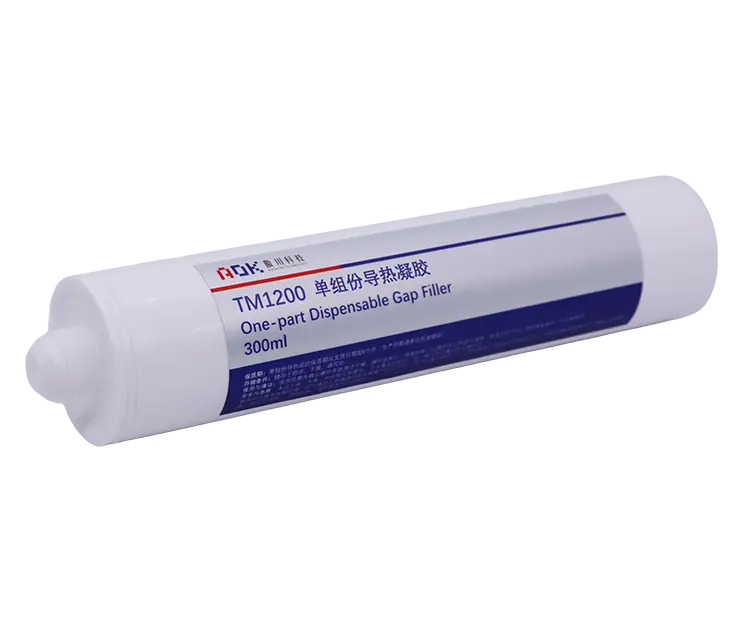

TM1200 is a highly malleable silicone thermal conductive product featuring high thermal conductivity and electrical insulation. Its semi-fluid state accommodates automated dispensing processes, delivering efficient heat transfer and superior gap-filling performance.
Thermal Conductivity: 12.0W/(m·K)
High electrical insulation
Well temperature resistance
Can be automated dispensing
Properties | Attribute | Test Method |
Color | Grey | Visual |
Density (g/cc) | 3.3 | ASTM D792 |
Flow Rate (g/min) | ≥2.0 | 0.62MPa/14 needle |
Anti-cracking Sagging | No sagging or through-cracking | @140℃/60h |
Usage Temperature (°C) | -40 to 150 | / |
Flammability | V-0 | UL 94 |
Shelf Life (Month) | 6 | Temperature<40℃ avoid extrusion and exposure to the sun |
Electrical | ||
Breakdown Voltage (kV/mm) | ≥5.0 | ASTM D149 |
Thermal | ||
Thermal Conductivity (W/(m·K)) | 12.0 | ISO 22007-2 |
