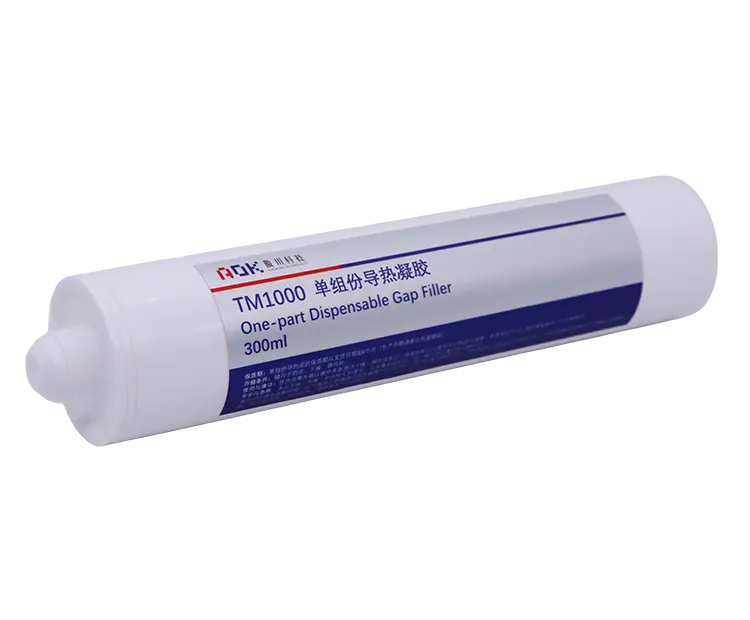

TM1000 is a highly moldable silicone thermal conductive product. It features high thermal conductivity and high electrical insulation. Its semi-flow state enables automated dispensing processes. TM1000 delivers efficient thermal conduction and excellent gap-filling performance.
Thermal Conductivity：10.0 W/(m·K)
High Electrical Insulation
Good Heat Resistance
Enables Automated Processes
Network Communication Equipment
Storage Modules
Consumer Electronics
Power Converters
Power Supply Modules
Attribute | Value | Test Method |
Color | Grey | Visual |
Extrusion Rate(g/min) | ≥2.0 | @0.62MPa/14#nozzle |
Density(g/cc) | 3.3 | ASTM D792 |
Volatile Content | None | 120℃/24h |
Sag Resistance | No sagging, no breakthrough, crack width＜1mm | 140℃/60h |
Usage Temperature(°C) | -40 to 200 | / |
Flammability | V-0 | UL 94 |
Shelf Life(Months) | 6 | Temperature<40℃ avoid extrusion and exposure to the sun |
Electrical | ||
Breakdown Voltage(kV/mm) | ≥5.0 | ASTM D149 |
Thermal | ||
Thermal Conductivity(W/(m·K)) | 10.0 | ISO 22007-2 |
