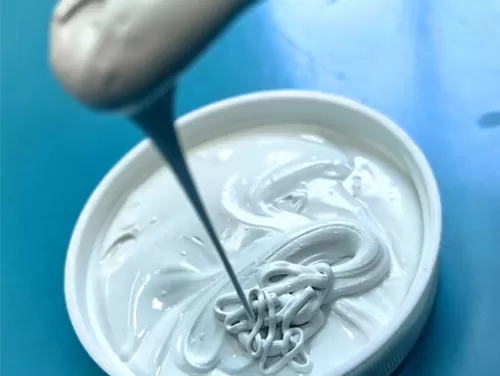

TG600 is a thermal grease with a high thermal conductivity coefficient. This product does not contain metal thermal fillers, offering excellent heat resistance, long-term stability, and reliability. Its low Bond Line Thickness (BLT) effectively reduces the contact thermal resistance between the heat sink and the heat source. It is widely used in thermal management for PCB system components and photovoltaic inverters.
Thermal Conductivity: 6.0W/(m·K)
Metal-free filler, high electrical insulation
Low volatility (low bleed)
Excellent long-term stability and reliability
Good wettability on contact surfaces, effectively reducing interfacial thermal resistance
Network Communication Equipment
Consumer Electronics
Industrial Control Equipment
PCB Heat Dissipation Components
Photovoltaic Inverters
High-Power LED Lightin
Attribute | Value | Test Method |
Color | White | Visual |
Density (g/cc) | 3.2 | ASTM D792 |
Volatile Content (%) | ≤0.5 | @150℃/24h |
Physical State | Flowable | Visual |
Viscosity (cP) | 510000 | DV2T-T96-12Rpm |
Cone Penetration (0.1mm @25℃) | 266 | GB/T269 |
Usage Temperature (°C) | -40~150 | / |
Shelf Life (Months) | 12 | Temperature<40℃ avoid extrusion and exposure to the sun |
Electrical | ||
Breakdown Voltage (kV/mm) | ≥5 | ASTM D149 |
Volume Resistivity (Ω·cm) | 1012 | ASTM D257 |
Thermal | ||
Thermal Conductivity (W/(m·K)) | 6.0 | ISO 22007-2 |
Thermal Resistance (℃·in2/W @50psi,80℃) | ≤0.017 | ASTM D5470 |
