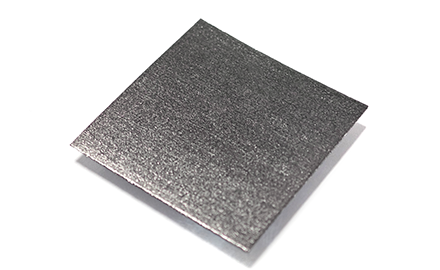

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TP300 Series Thermal Pad
TP300 an extremely soft gap filler pad that also harnesses exceptional thermally conductive characteristics. TP300 can meet the design needs of numerous design requirements and specifications. TP300 will provide the innate thermal requirements your design needs without over stressing the components or cases.
Features: soft and highly compliant, naturally tacky, easing application.
Applications: industrial LEDs, power supplies and conversion, PCB, laptop, chipset, M.2 heat sink, super charge, IPC and medical power supplies, packaged modules, DIN rail power supplies, DC/DC converters and modular DC UPS systems, GaN Chargers.
Send Inquiry
Applications: industrial LEDs, power supplies and conversion, PCB, laptop, chipset, M.2 heat sink, super charge, IPC and medical power supplies, packaged modules, DIN rail power supplies, DC/DC converters and modular DC UPS systems, GaN Chargers.
Technical Information
Attribute |
Value |
Test Method |
| Composition | Ceramic Filler + Silicone | - |
| Color | Light Blue | Visual |
| Thickness (mm) | 0.5 ~ 10.0 | ASTM D374 |
| Density (g/cc) | 3.0 | ASTM D792 |
| Hardness (shore oo) | 55 (Thickness ≥ 1.0 Shore OO 40) | ASTM D2240 |
|
Usage Temperature (℃) |
-40 ~ +150 | - |
Electrical |
||
| Breakdown Voltage (kV/mm) | ＞5.0 | ASTM D149 |
| Dielectric Constant @1MHz | 7.3 | ASTM D150 |
| Volume Resistivity (Ω.cm) | 1013 | ASTM D257 |
| Flammability | V-0 | UL 94 |
Thermal |
||
| Thermal Conductivity (W/m.K) | 3.0 | ISO 22007-2 |
Legal Disclaimer
The technical information and data shown on this page should be considered representative or typical only and should not be used for specification purposes. Please contact us or e-mail [email protected] to determine product availability.
* OEM: thermal pads are available in sheets or cut parts to match a wide range of industry standard or customer defined outlines.
Thermal Pad Manufacturer
AOK
Standard Sheet Size
200x400mm or custom die cut parts.
Thickness available in 0.25mm increments.
Storage
Store in a cool, dry, well-ventilated place.
Shelf life
Shelf life of the product is 12 months after date of shipment.
