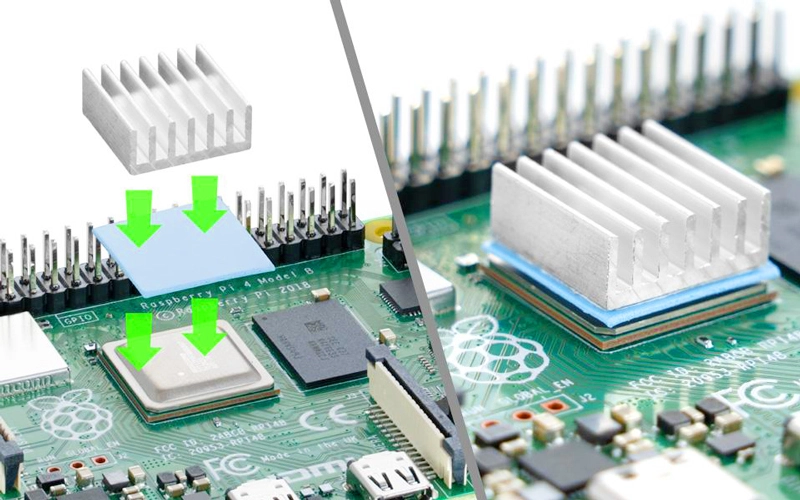

Thermal Interface Materials (TIMs) are used to improve heat transfer between two surfaces (typically between a heat sink and a component like a processor or power electronics) by filling microscopic air gaps and irregularities. These materials are designed to have high thermal conductivity, low thermal resistance, and good mechanical properties to ensure efficient heat dissipation. TIMs are typically made from one or more of the following materials:

1. Silicone-Based Compounds

● Composition: Silicone rubber mixed with thermally conductive fillers (e.g., aluminum oxide, boron nitride, or silica).

● Properties: High flexibility, good wetting properties (adheres well to surfaces), easy to apply and conform to uneven surfaces, relatively low cost.

● Common Forms: Pads, pastes, gels, or sheets.

● Applications: Common in electronics and automotive industries, often used in consumer electronics, LED heatsinks, and automotive power modules.

2. Polymer-Based Materials

● Composition: Epoxies, polyimides, or other thermosetting polymers combined with thermally conductive fillers.

● Properties: Provides stable thermal performance over a wide temperature range, good mechanical strength and adhesion.

● Common Forms: Adhesive films or tapes.

● Applications: Often used in applications that require permanent bonding and where flexibility is less of a concern.

3. Metal-Based Materials

● Composition: Metals like copper or silver mixed with a polymer matrix or used in the form of metal foils.

● Properties: Very high thermal conductivity, excellent heat transfer.

● Common Forms: Metal foils or phase change materials.

● Applications: Used in high-performance applications where maximum heat dissipation is critical, such as high-power LEDs, high-end processors, or power electronics.

4. Graphite-Based Materials

● Composition: Expanded or flexible graphite sheets, sometimes enhanced with polymer binders to improve handling and flexibility.

● Properties: Extremely high thermal conductivity, often higher than metals like copper, thin and lightweight, high mechanical strength and flexibility.

● Common Forms: Sheets, pads, or films.

● Applications: Used in compact devices and high-performance electronics where space and weight are constraints, such as smartphones, laptops, and automotive electronics.

5. Ceramic-Based Materials

● Composition: Ceramics like aluminum oxide (Al₂O₃), boron nitride (BN), or silicon carbide (SiC) combined with a polymer matrix or as standalone materials.

● Properties: High thermal conductivity, electrical insulation (especially with boron nitride), rigid and often brittle.

● Common Forms: Pads, discs, or thin films.

● Applications: Used in applications that need both heat dissipation and electrical insulation, such as in high-power semiconductors or LED packaging.

6. Phase Change Materials (PCMs)

● Composition: These materials often contain waxes, paraffins, or other organic compounds mixed with thermally conductive fillers (like graphite or ceramic particles).

● Properties: The material undergoes a phase change (from solid to liquid) at a specific temperature, which helps absorb and dissipate heat effectively, low thermal resistance when in its liquid phase, good for applications with high power density where heat generation fluctuates.

● Common Forms: Sheets, pads, or foils.

● Applications: Used in areas where a wide temperature range is encountered, such as CPUs, GPUs, and high-power electronics.

7. Thermal Greases or Pastes

● Composition: A blend of silicone, zinc oxide, aluminum oxide, boron nitride, or silver particles suspended in a thick paste.

● Properties: High thermal conductivity, excellent for small gaps where precise application is needed, flexible and can fill gaps between surfaces of various irregularities.

● Common Forms: Pastes, often applied manually.

● Applications: Common in computing devices, processors, and GPUs.

8. Carbon Nanotubes and Graphene-Based TIMs

● Composition: These are cutting-edge materials made from carbon nanotubes or graphene incorporated into a matrix material.

● Properties: Extremely high thermal conductivity (superior to traditional metals), lightweight and durable, excellent for high-end applications that require maximum thermal performance.

● Common Forms: Usually in paste, film, or composite form.

● Applications: Advanced electronics, space technology, and military applications, where high heat dissipation and lightweight are critical.

Factors to Consider When Choosing a TIM:

1. Thermal Conductivity: The higher the conductivity, the more efficient the heat transfer.

2. Thickness: The material should be thin to minimize thermal resistance, but thick enough to compensate for surface roughness.

3. Viscosity: The material should have good wetting properties to fill gaps between surfaces effectively.

4. Mechanical Properties: Depending on the application, the TIM might need to be flexible or rigid.

5. Electrical Conductivity: In many cases, electrical insulation is necessary to avoid short circuits, so non-conductive TIMs are used.

6. Temperature Range: The material should be stable across the operating temperature range of the device or component.

7. Ease of Application: Some TIMs are more difficult to apply than others, such as those that need precise placement or curing.

Common TIM Types and Uses:

1. Thermal Pads: Often silicone-based, used in various electronic applications for good balance of thermal conductivity, ease of use, and cost.

2. Thermal Pastes/Greasers: Mainly used in consumer electronics like CPUs or GPUs to ensure efficient heat transfer between the processor and its heatsink.

3. Phase Change Materials: Used in situations where thermal flux is variable and high-performance cooling is needed, such as in power electronics.

Each type of thermal interface material is selected based on the specific requirements of the application—whether that's high performance, flexibility, cost-efficiency, or long-term stability.
