What Is the Thermal Conductivity Test Standard for Thermal Pad?

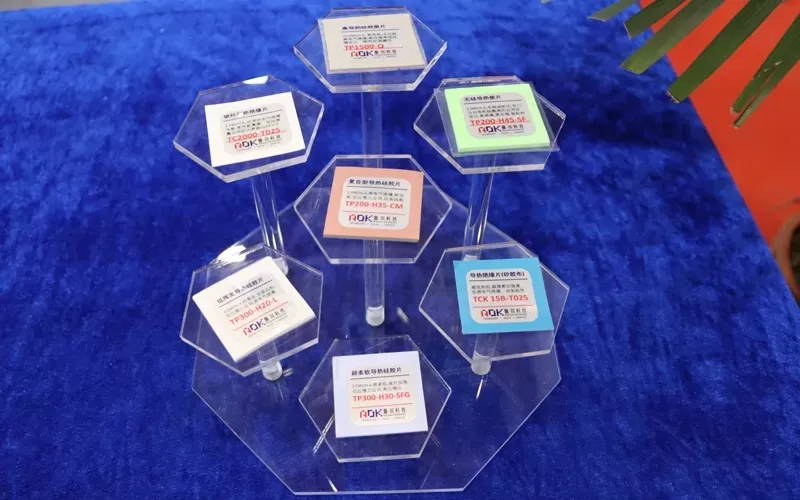

Thermal Pads

The thermal conductivity test standard for thermal pads typically depends on the specific industry or application requirements. However, one widely recognized and commonly used standard for testing thermal conductivity is ASTM D5470-06 (Standard Test Method for Thermal Transmission Properties of Thermally Conductive Electrical Insulation Materials).

ASTM D5470-06 provides guidelines for measuring the thermal conductivity of materials under steady-state conditions using a guarded heat flow meter apparatus. This test method allows for the accurate determination of the thermal conductivity of thermally conductive materials, including thermal pads.

The test involves placing the thermal pad sample between two metal plates, with controlled temperature differences applied across the plates. The heat flow through the sample is measured, and the thermal conductivity is calculated based on the dimensions of the sample and the temperature gradient.

It's important to note that specific industries or manufacturers may have their own internal testing procedures or standards for thermal pads. For example, the electronics industry might refer to JEDEC (Joint Electron Device Engineering Council) standards or specific customer requirements for thermal conductivity testing.

To ensure accurate and consistent results, it's recommended to consult the relevant industry standards or follow the testing procedures specified by the thermal pad manufacturer.

If you would like to learn more about AOK performance thermal materials, please visit our website at www.aok-technologies.com

Updated on:2024-07-03 14:27:31
