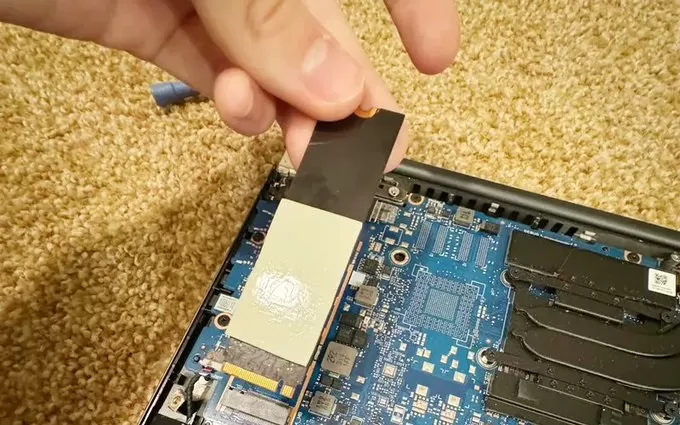

How Do I Determine the Thermal Pad Thickness to Order?

heat transfer pad

Gap Distance: Measure the distance between the heat source (e.g., a chip or component) and the heat sink or cooling solution. This distance will help determine the required thickness of the thermal pad.

Manufacturer Specifications: Check the specifications or datasheet provided by the heat sink or thermal pad manufacturer. They may recommend a specific thickness range for optimal performance. Adhering to the manufacturer's guidelines ensures compatibility and efficient heat transfer.

Thermal Conductivity: Evaluate the thermal conductivity of the thermal pad material. Higher thermal conductivity allows for better heat dissipation. Consider selecting a thermal pad with a higher conductivity if heat dissipation is a critical factor for your application.

Compression and Material Properties: Thermal pads are compressible, meaning they will be compressed when installed between the heat source and the heat sink. Consider the compression characteristics of the pad material and the recommended compression range provided by the manufacturer. Compression helps establish good thermal contact and improves heat transfer efficiency.

Application Requirements: Consider the specific requirements of your application, such as power dissipation, operating temperature range, and thermal management goals. These factors will influence the desired thickness and performance characteristics of the thermal pad.

Consultation and Testing: If possible, consult with thermal management experts or reach out to the thermal pad manufacturer for guidance. They may provide recommendations based on their expertise or even offer sample pads for testing in your specific application.

Keep in mind that selecting the appropriate thermal pad thickness is crucial for effective heat transfer and the overall thermal performance of your system. Considering the factors mentioned above and seeking expert advice when needed will help you make an informed decision.
