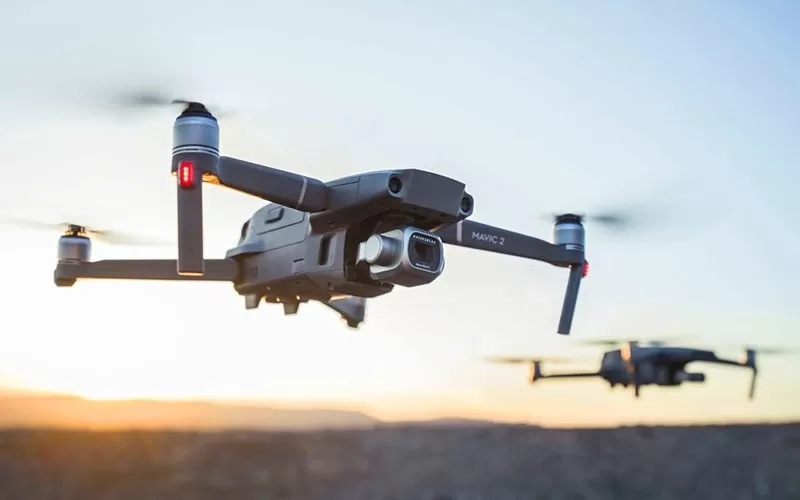

Drones equipped with Electromagnetic Interference (EMI) shielding and Thermal Interface Materials (TIMs) represent an advanced integration of technologies aimed at enhancing their performance, reliability, and safety.

EMI Shielding in Drones

Electromagnetic Interference (EMI) refers to the disruption of electronic devices caused by electromagnetic fields from other sources. For drones, EMI can be particularly problematic, as it can interfere with onboard electronics, sensors, communication systems, and GPS signals, leading to malfunctions or loss of control.

EMI Shielding Solutions

Conductive Coatings: Applying conductive materials (e.g., copper, aluminum) to drone components to block or reflect electromagnetic fields.

Shielded Enclosures: Housing sensitive electronics within metal enclosures or using conductive gaskets to prevent EMI from penetrating the drone's body.

Shielding Tapes and Fabrics: Wrapping cables and critical electronic components with shielding tapes or fabrics to minimize EMI exposure.

Filtered Connectors: Using connectors with built-in filters to block unwanted electromagnetic noise from entering or leaving the drone's systems.

Thermal Interface Materials (TIMs) in Drones

Drones generate significant heat, especially in high-performance models or those with advanced sensors and cameras. Managing this heat is crucial to prevent overheating, which can degrade performance and shorten the lifespan of components.

TIM Solutions

Thermal Pads: Soft, thermally conductive pads placed between heat-generating components (like CPUs, GPUs) and heat sinks to improve heat transfer.

Thermal Grease/Paste: A thermally conductive compound applied between heat-generating components and heat sinks to eliminate air gaps and enhance heat dissipation.

Phase Change Materials (PCMs): Materials that change phase (solid to liquid) at certain temperatures, absorbing and releasing heat efficiently. Graphite Sheets: Thin, flexible sheets that offer high thermal conductivity, often used in tight spaces to spread heat across a larger area.

Heat Pipes: Tubes filled with a liquid that vaporizes when heated and condenses when cooled, efficiently transporting heat away from critical components.

Applications and Benefits:

Improved Reliability: By shielding against EMI and effectively managing heat, drones can operate more reliably in environments with high electromagnetic interference and under heavy loads.

Enhanced Performance: Better thermal management allows drones to maintain optimal performance for longer periods, even during intensive operations.

Extended Lifespan: Reducing the stress on electronic components through proper heat dissipation and EMI protection helps extend the overall lifespan of the drone.

Safety: Preventing overheating and EMI-related malfunctions enhances the safety of drone operations, particularly in critical applications like search and rescue or industrial inspections.

These technologies are particularly important in drones used for professional, military, or industrial purposes, where reliability and performance are paramount.
