TP 400 Series thermal pad
TP 400 elevates the thermal performance bar, achieving 4 W/ mK while maintaining a hardness of 55 (shore 00). The low hardness in comparison to thermal conductivity proves that TP 400 will meet the demands of your challenging design requirements.
Product features:Thermal conductivity: 4.0 W/m.k , Low Silicone Oil Extraction
Typical applications:Industrial: LEDs, Power Supplies and Conversion
Contact us for samples
Product Specifications
Attribute Value Test Method
Composition Ceramic Filler + Silicone -
Color Purple Visual
Thickness(mm) 0.5~6.5 astm d374
Density(g/cc) 3.2 ASTM D792
Hardness(shore oo) 55 ASTM D2240
Usage Temperature(℃) -40~150 --
Electrical
Breakdown Voltage(kv/mm) ≥6.0 ASTM D149
Dielectric Constant(@1mhz) 7.5 ASTM D150
Volume Resistivity(Ω.cm) 10^10 ASTM D257
Flammability V-0 UL94
Thermal

Thermal conductivity(W/m.K) 4.0 ASTM D5470
Purchase information

Standard size: T≤1.5mm,size=200*400mm; T>1.5mm,size=150*150; which can be die-cut into various sizes and shapes as specified by customers. The increasing gradient of thickness is 0.25mm.

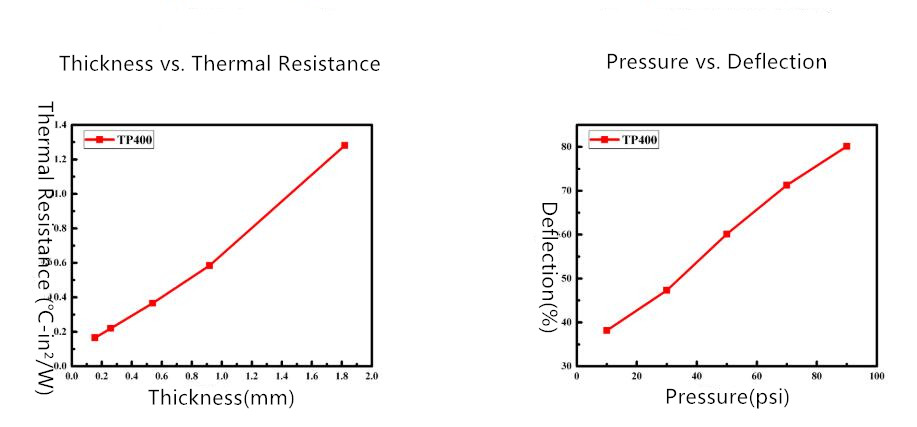

Product Performance
