TCK Series Electrically Insulating Thermal Sheet
Polyimides have few equals when it comes to durability. TCK Series, leverages these traits and adds an enhanced thermal coating to lower contact resistance for the toughest of applications. Rest assured that this combination will provide the needed thermal, electrical, and cut through features required.
Product features:Thermal conductivity: 0.9/1.1/1.3 W/m.k , High Cut Through Resistance
Typical applications:Power Modules, Automotive Power Modules and EV Applications
Contact us for samples
Typical applications:Power Modules, Automotive Power Modules and EV Applications
-
Product feature■ Thermal conductivity: 0.9/1.1/1.3 W/m.k
■ High Cut Through Resistance
■ High Breakdown Voltage
■ UL 94 V 0 Rating
■ Low Thermal Resistance -
Typical applications■ Power Modules
■ Fiber Optics
■ Automotive Power Modules and EV Applications
■ Motor Controls
■ Semiconductors

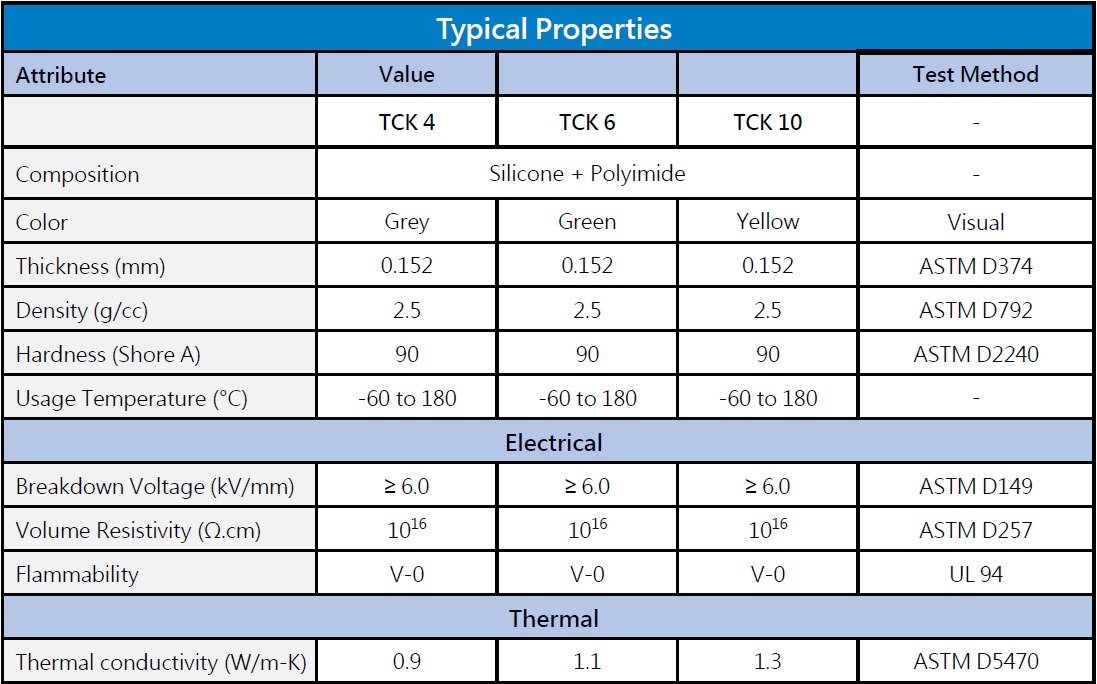

Product Specifications

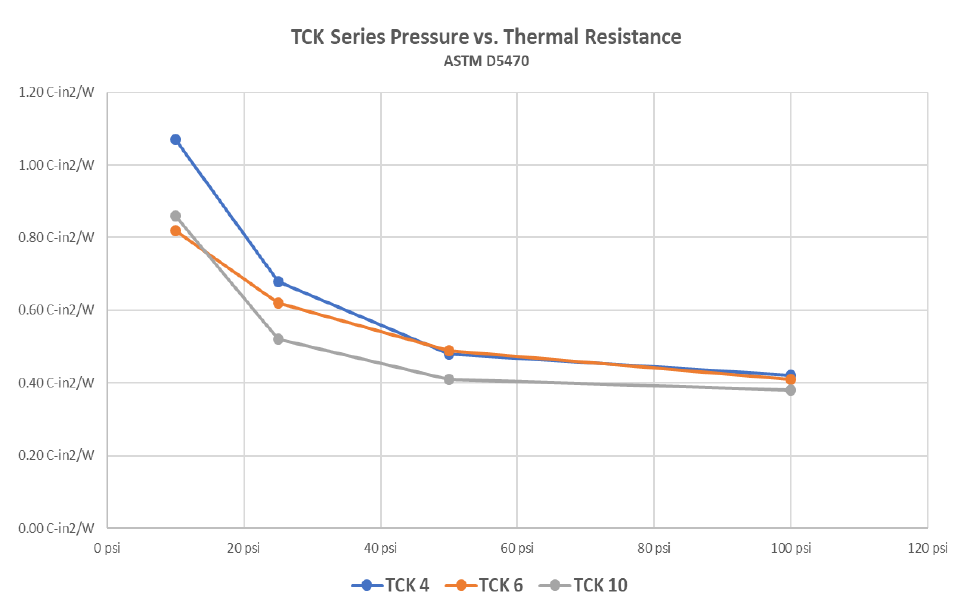

Product Performance

Download
